The Model of The Aluminum Lighting Truss

According to the span and the loading weight of the structure we divided the truss into 3 types:

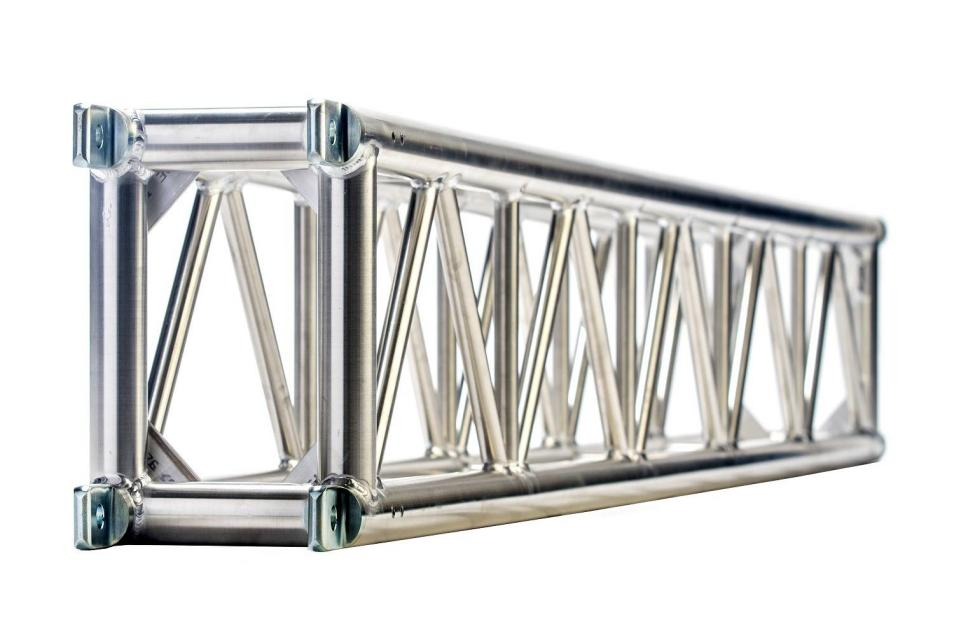

1.Light duty truss

250*250mm/290*290mm/300*300mm/400*400mm

For those light duty truss model the material are as below:

Main tube=50*3mm

Vice tube=25*2mm

Brace tube=20*2mm

For 300*300mm truss max span can reach 14m with the total weight loading capacity of 500kg.

For 300*400mm truss max span can reach 15m with the total weight loading capacity of 600kg.

For 400*400mm truss max span can reach 16m with the total weight loading capacity of 700kg.

For 450*450mm truss max span can reach 16m with the total weight loading capacity of 800kg.

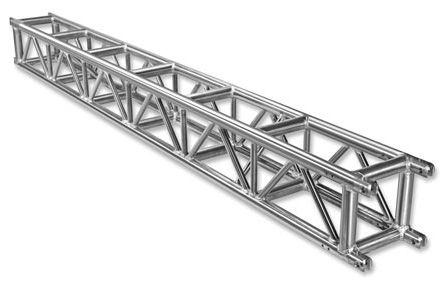

2.Middle duty truss

400*500mm/400*600mm/520*520mm/500*600mm

For those model truss max span can reach 16m with the total weight loading capacity of 850kg.

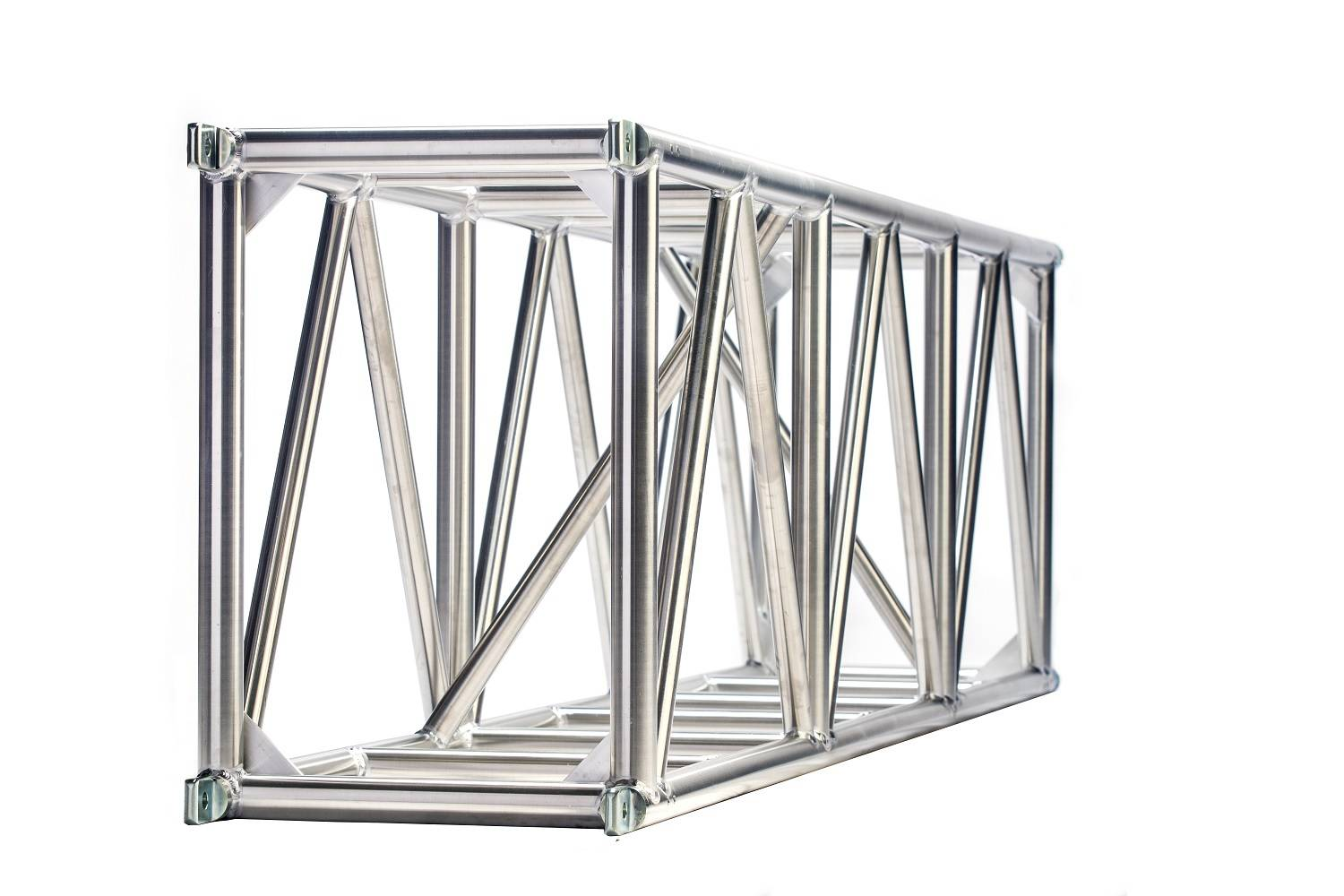

3.Heavy duty truss

520*760mm/600*760mm/800*1500mm

For those heavy duty truss max span can reach 30m with the total weight loading capacity of 1500kg.

All those models are available according to different events.

For more detailed information please kindly contact with us shizhan group .
