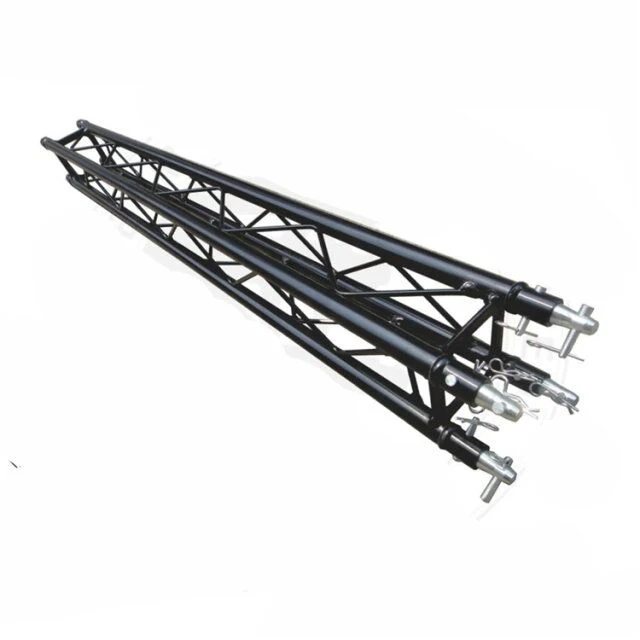

Spigot Square Truss Black
Technical Parameters
Material:aluminum alloy 6061-T6/6082-T6
Main Tube: Ø50x3.0mm
Vice Tube: Ø25x2.0mm
Brace: Ø20x2.0mm
Connect: Spigot
Color: Silver or black, blue, green...
Size: 200x200mm - 600x1000mm for option
Length: 0.5m, 1.0m 2.0m, 3.0m, 4.0m
Certificate: CE, SGS, TUV

290x290mm Square Truss Loading Table

Technical Parameters
Material:aluminum alloy 6061-T6/6082-T6
Main Tube: Ø50x3.0mm
Vice Tube: Ø25x2.0mm
Brace: Ø20x2.0mm
Connect: Spigot
Color: Silver or black, blue, green...
Size: 200x200mm - 600x1000mm for option
Length: 0.5m, 1.0m 2.0m, 3.0m, 4.0m
Certificate: CE, SGS, TUV

290x290mm Square Truss Loading Table

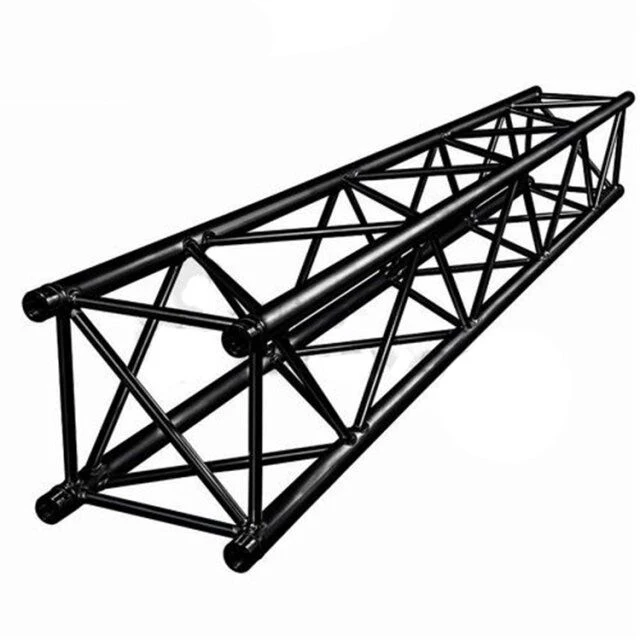

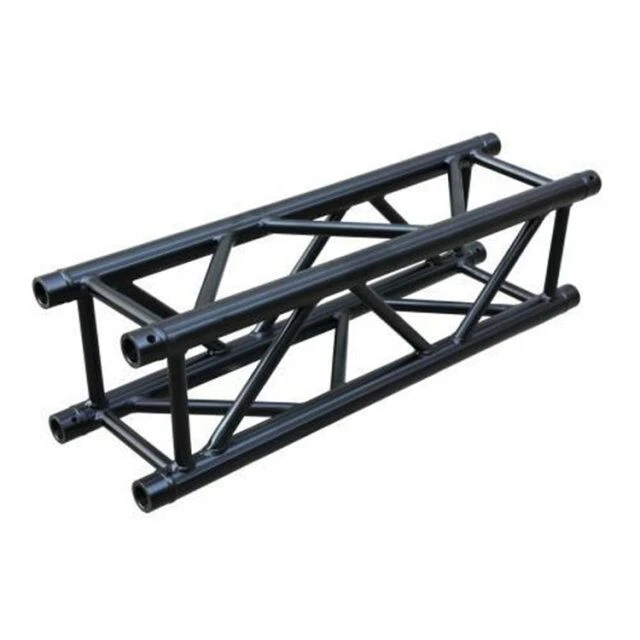

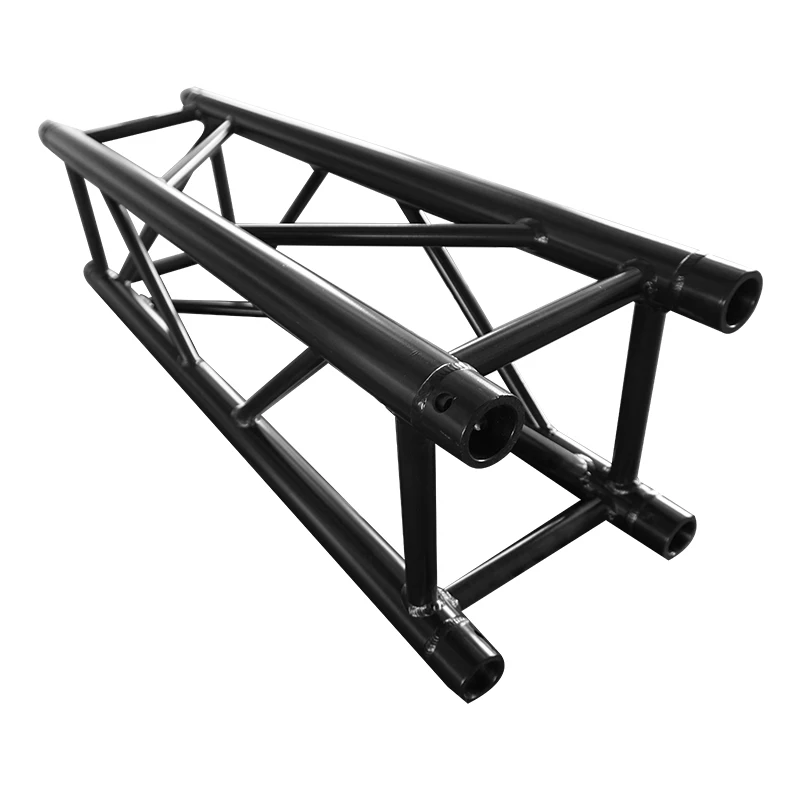

Aluminum Truss

Name Aluminum 12 inch portable lighting black truss
Truss Material  Aluminum alloy 6082-T6
Light duty truss 200*200mm; 250*250mm
Medium duty truss 290*290mm,300*300mm; 350*350mm
300*400mm ; 400*400mm; 450*450mm; 400*600mm
Heavy duty truss 520*760mm ; 600*760mm; 600*1000mm
Main tube thickness 30*2mm; 50*3mm; 50*4mm; 50*5mm
Vice tube thickness 18*2mm; 20*2.5mm; 25*2.5mm
Brace tube thickness 20*2mm; 25*2mm; 30*2mm
Length 0.5m/1m/1.5m/2m…….4m or custom size
Truss type Spigot  or bolt
Truss Shape Ladder truss, triangular truss, square truss, arch truss, circle truss
Color Silver or black, blue, green...
Usage Concert, new product release, fashion show, booth stand construction
Delivery Time 10 working days




 black truss (1).jpg









 black truss (2).jpg







 black truss (3).jpg







,black truss (4).jpg


















1: Why should i choose your company instead of other suppliers?

1) TUV, SGS, CE Certified.

2) 15 years Experience in truss, stage, barrier and scaffolding.

3) 35000 m² WORKSHOP Offers good production capacity which can make sure to delivery orders On time.

4) Professional engineer team offer you the Perfect Solutions for your project.

5) Have our own Aluminum Profile Production line which can control the good quality of material.

6) Professional & strict QC team which can make sure all products in good condition before delivery.

7) Process and Final Inspection,strict product precision control ,installation test before delivery for each order.



2: How do i know your quality? Do you support sample order?

Our products has obtained TUV/SGS/CE/ISO9001 Certificates in the international market,which proves that our products’s Excellent quality.

We can also offer samples for customer to do the quality checking before placing the batch order.



3: Which kinds of payment your company can accept?

T/T,Western Union,Trade Assurance, L/C.



4: What is your products warranty time?

Usually our products warranty is one year and during the warranty time any damage if not by artificial, we will send new one for free.



5:Can you do customized design?

Yes, our professional Technical team will offer you the perfect solutions for your projects.
