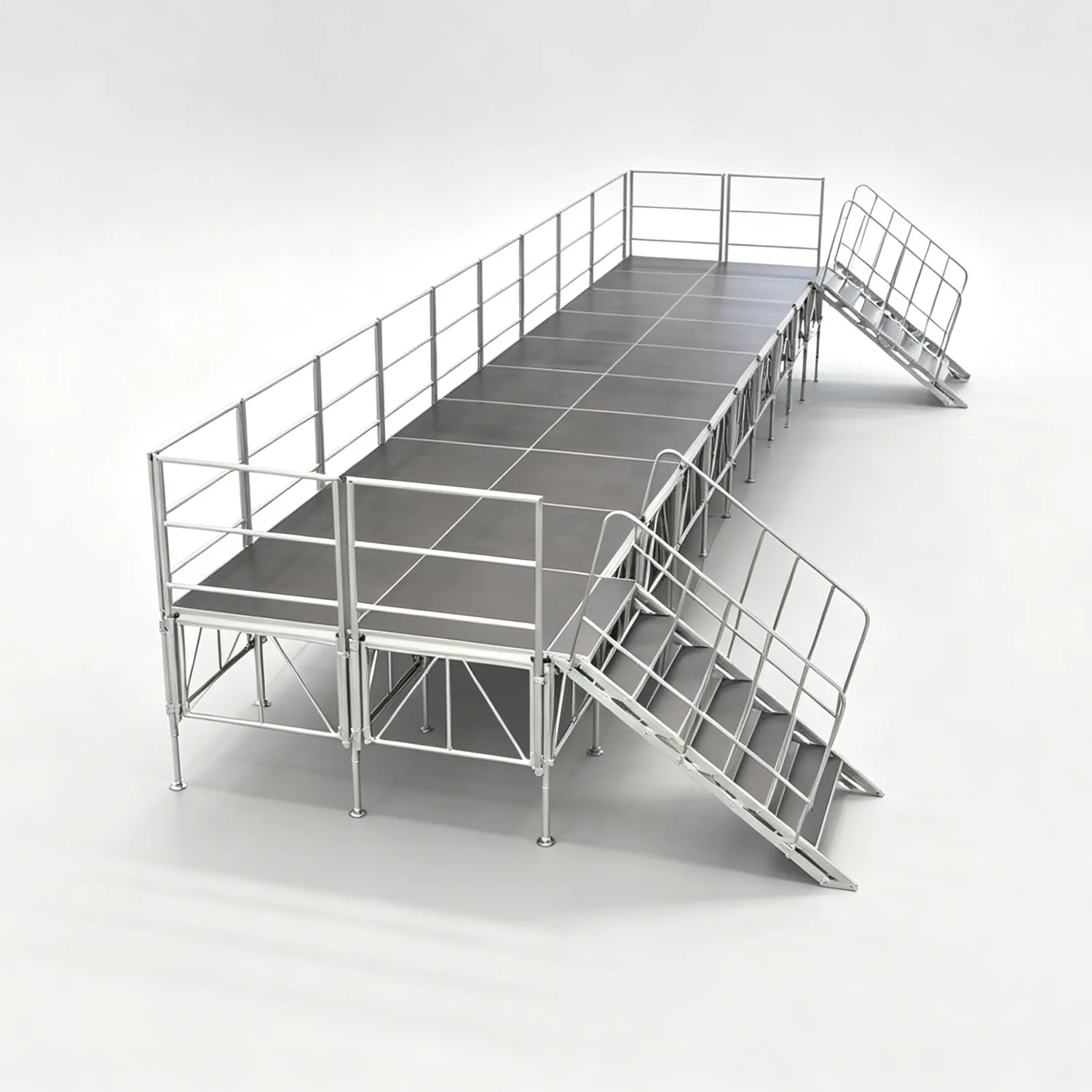

Modular Aluminum Assembly Stage, Quick Install Anti-Slip Stage Platform for Indoor Outdoor Events
Aluminum assembly stage features a modular interlocking design, enabling fast assembly without tools. The stage top is anti-slip and waterproof with stable load capacity, suitable for indoor and outdoor performances, exhibitions, weddings and temporary events. Made of high-strength aluminum alloy, the supports are lightweight yet sturdy. It can be freely combined into different sizes and heights. With protected edges for enhanced safety, it takes little space for storage and is easy to transport and reuse. Custom sizes are available, widely applied in concerts, commercial events, school galas and other occasions.
|
Item |
Detailed Parameters |
|
Product Name |
Aluminum Modular Stage / Stage Truss |
|
Brand Name |
shizhan |
|
Model Number |
SZ Stage |
|
Place of Origin |
Jiangsu, China |
|
Load-bearing Capacity |
750kg |
|
Material |
6061-T6 Aluminum Alloy |
|
Structure Type |
Single-Layer |
|
Connection Type |
Quick Connection (non-welding) |
|
Assembly Method |
Quick Installation |
|
Shape |
Square, Rectangle, Round, Circle (modular) |
|
Frame Design |
Rectangular |
|
Color |
Silver, Black |
|
Application |
Indoor & Outdoor |
|
Item |
Parameters |
|
Stage Panel Size |
1×1m / 1.22×1.22m / 1.22×2.44m / 1×2m for option |
|
Stage Panel Thickness |
15mm or 18mm transparent acrylic / 18mm anti-slip plywood / 15mm or 18mm tempered glass |
|
Common Dimensions |
1.22m × 1.22m, 1.22m × 2.44m |
1.Heavy Load, Safe Use — Load capacity up to 750kg per panel, ideal for concerts and heavy-duty events.
2.Quick Installation — Quick Connection system, no welding required, ready to use on arrival.
3.Adjustable Height — Multiple height options from 0.2m to 1.5m to suit any venue.
4.Multiple Surface Options — Transparent acrylic / anti-slip plywood / tempered glass, 15mm or 18mm.
5.Built to Last — 6061-T6 aluminum alloy frame with 50×3.0mm main tube for long service life.
6.Indoor & Outdoor — Anti-slip, anti-corrosion and weather-resistant, suitable for outdoor events.
