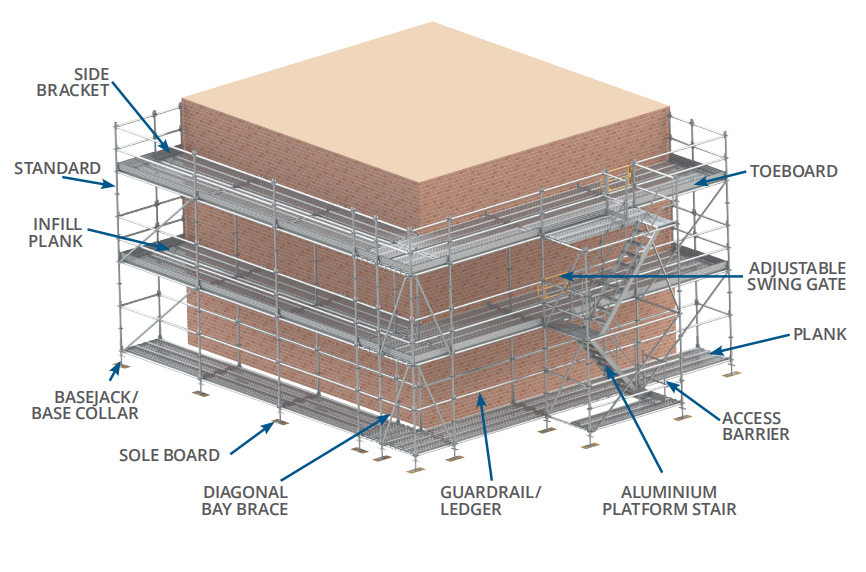

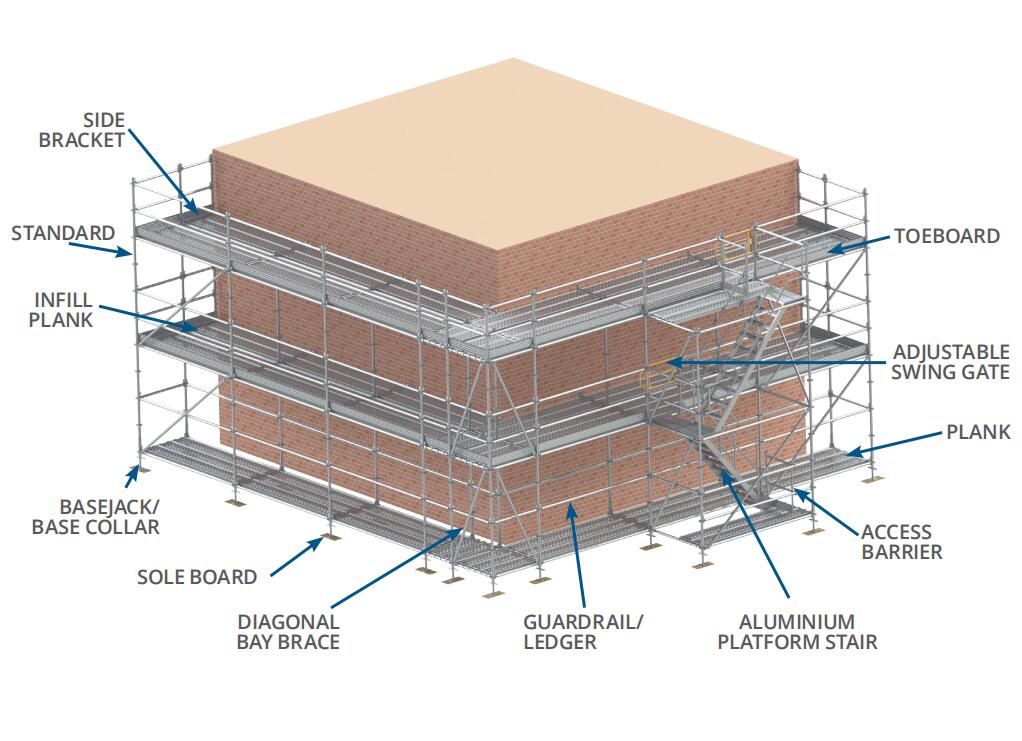

Ringlock Scaffolding

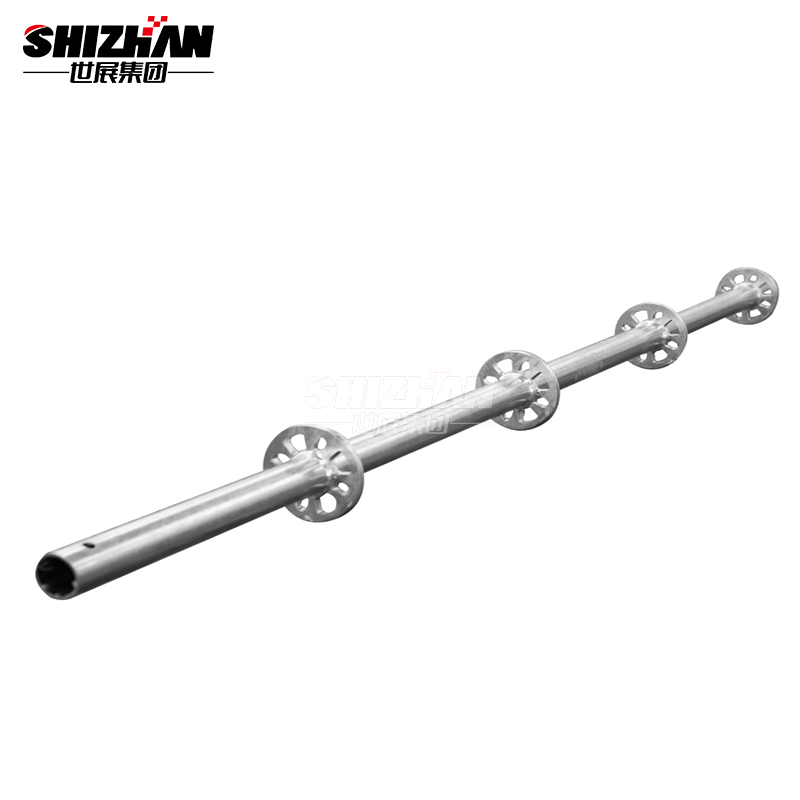

Standard:

Material: Q345, Ø48.3x3.2mm

Length: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m

Surface Treatment: Hot-dip Galvanized

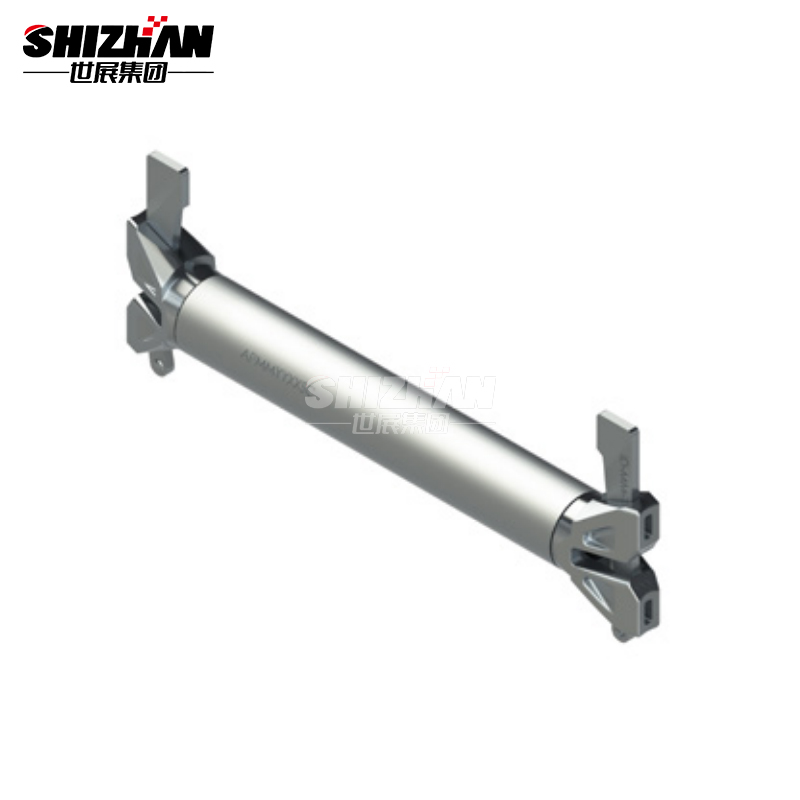

Ledger:

Material: Q235, Ø48x3.0mm

Length: 0.73m, 1.07m, 1.57m, 2.07m, 2.57m, 3.07m or customized

Surface Treatment: Hot-dip Galvanized

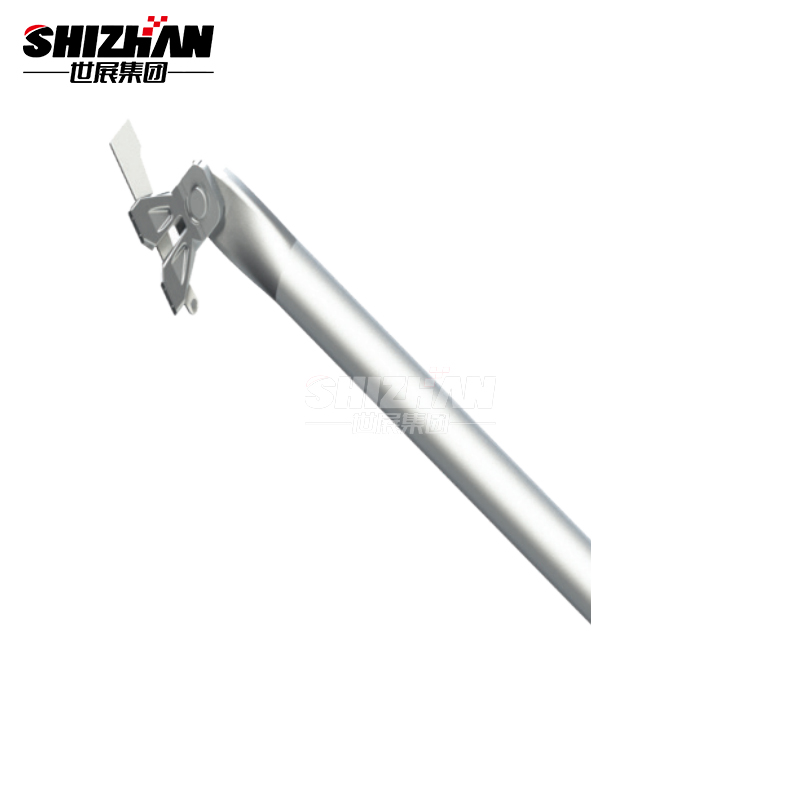

Diagonal Brace:

Material: Q235, Ø48.3x2.5mm

Length: 0.73x2.0m, 1.07x2.0m, 1.57x2.0m, 2.57x2.0m, 3.07x2.0m, 1.07x1.5m, 1.57x1.5m, or customized

Surface Treatment: Hot-dip Galvanized

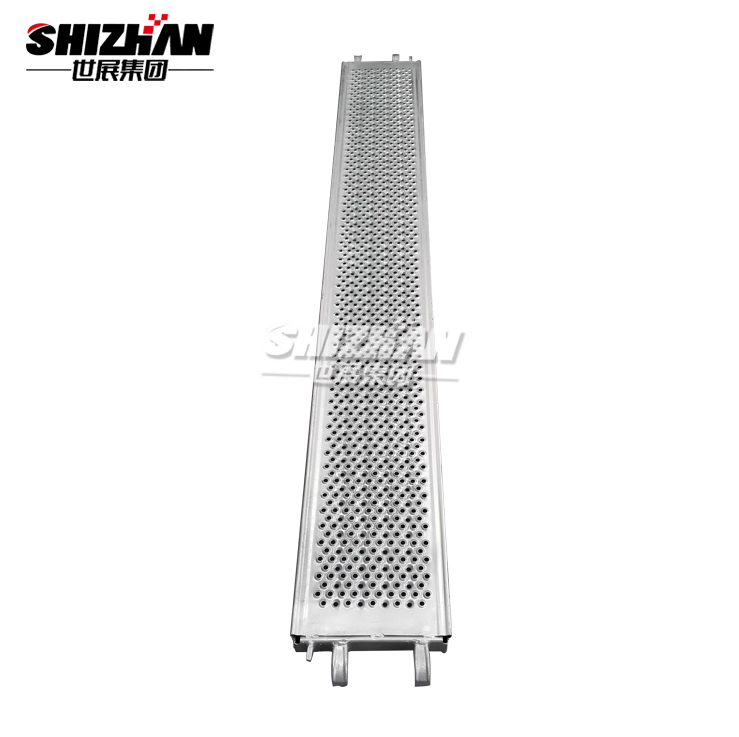

Steel Plank:

Material: Q235 steel

Width: 320mm/240mm/228.6mm width

Length: 0.73m, 1.07m, 1.57m, 2.07m, 2.57m, 3.07m or customized

Surface Treatment: Hot-dip Galvanized

320mm plank picture:

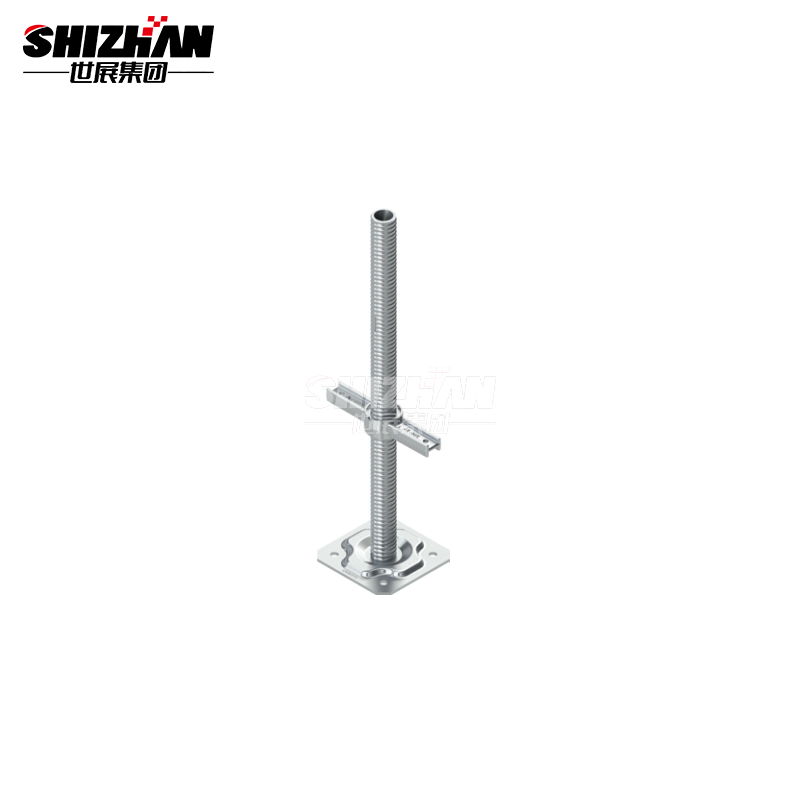

Base Jack:

Material: Q235, 38x5mm hollow screw tube

Height: 500/600mm

Surface Treatment: Electro Galvanized / Hot-dip Galvanized

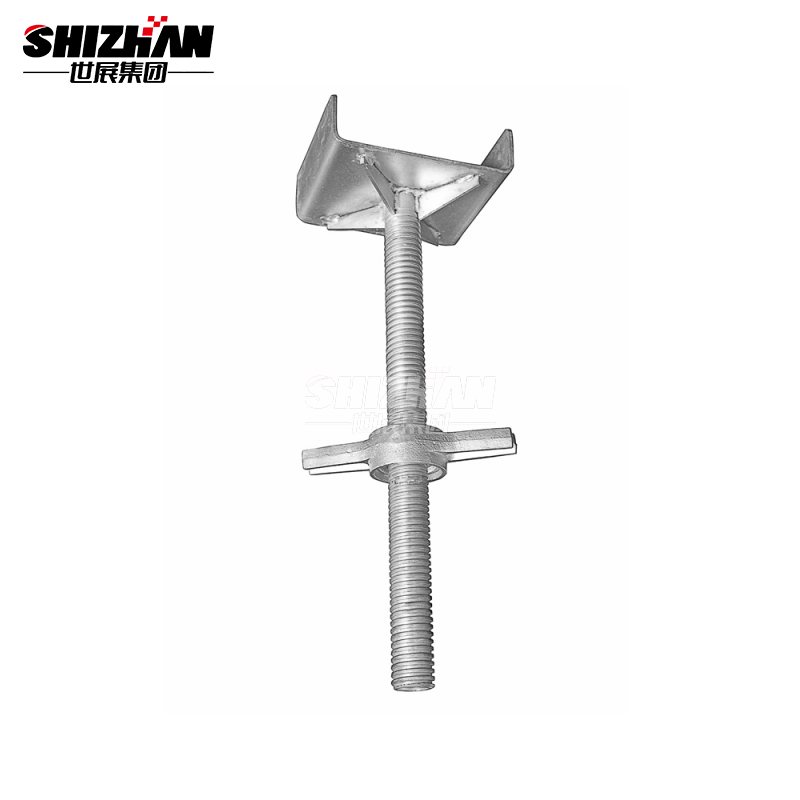

U-head Jack:

Material: Q235, 38x5mm hollow screw tube

Height: 500/600mm

Surface Treatment: Electro Galvanized / Hot-dip Galvanized

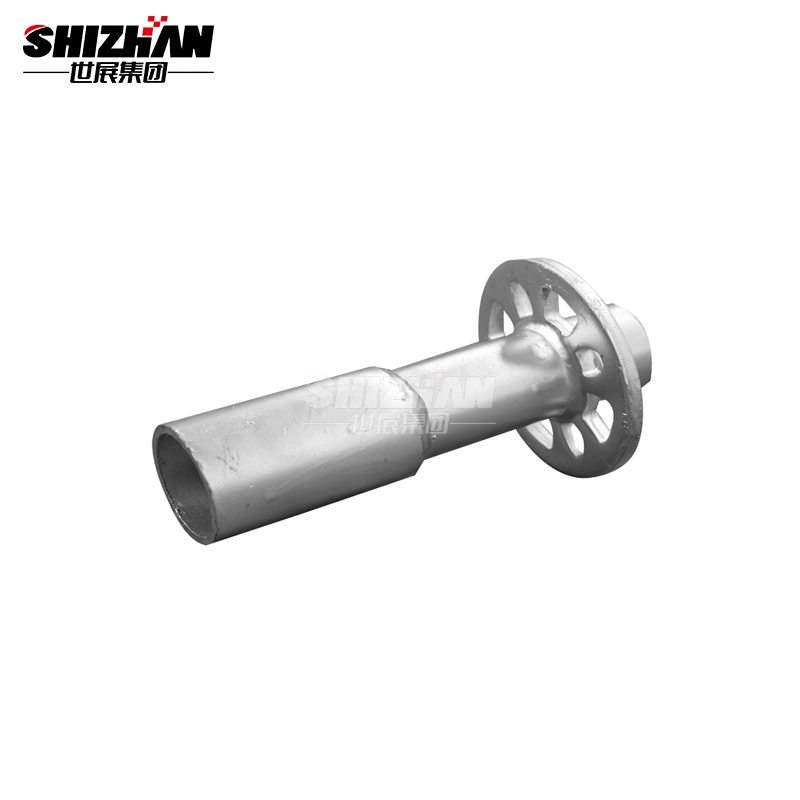

Base Collar:

Material: Q345, Ø48.3x3.2mm

Length: 0.21m

Surface Treatment: Hot-dip Galvanized

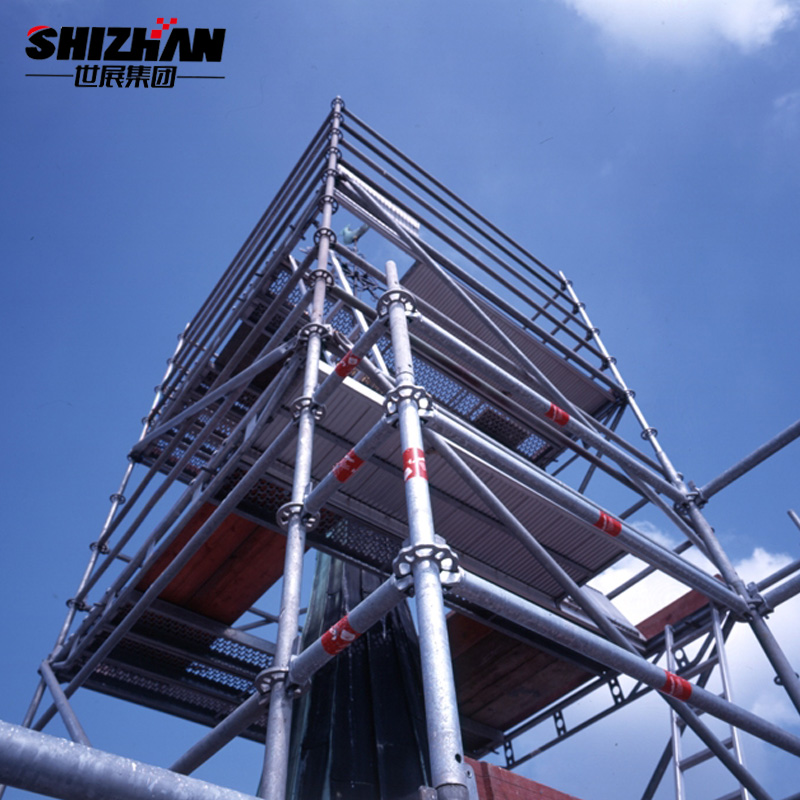

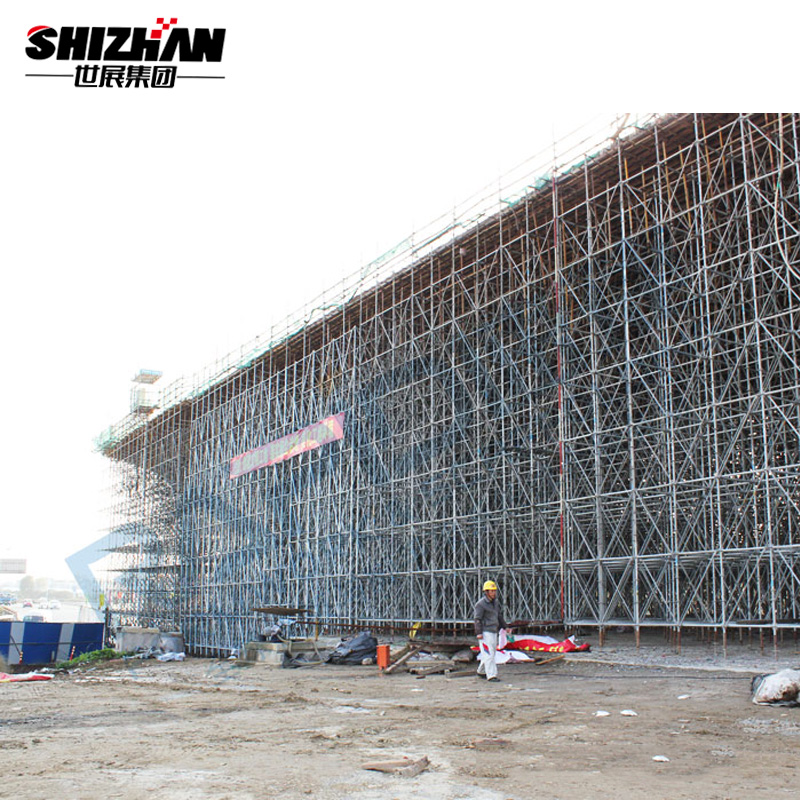

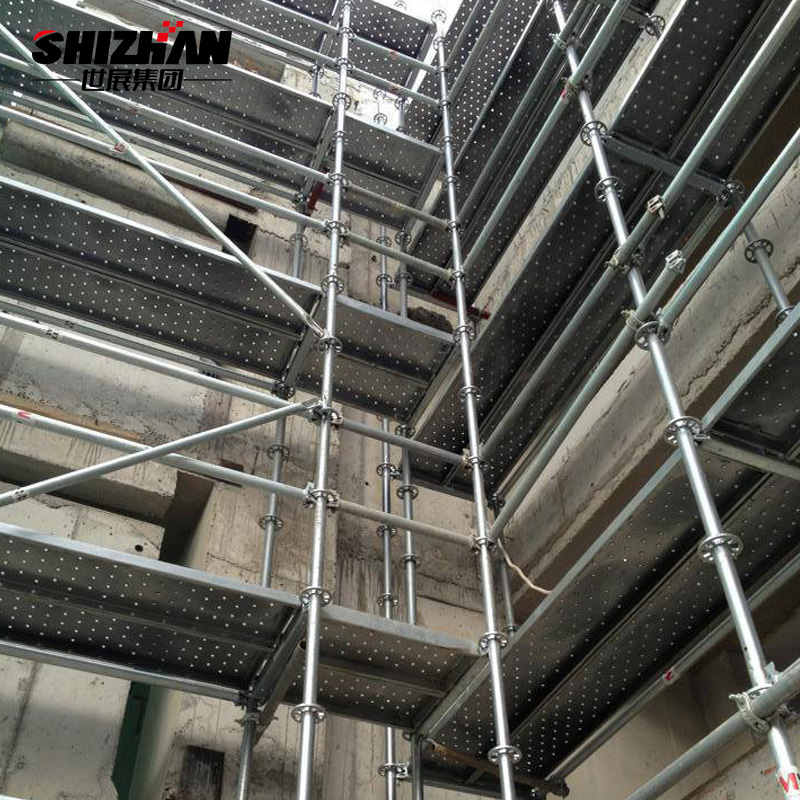

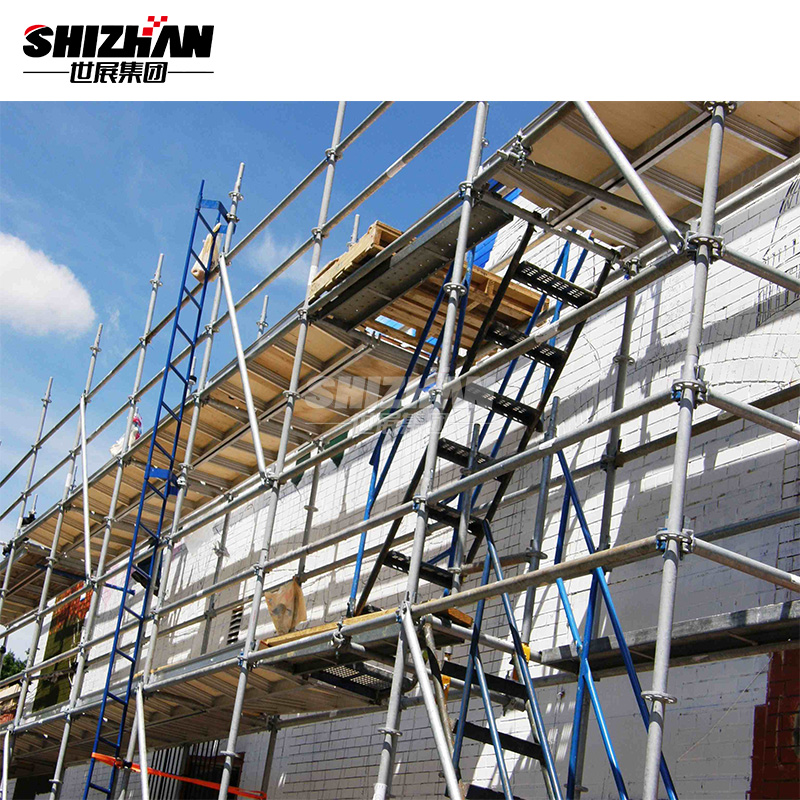

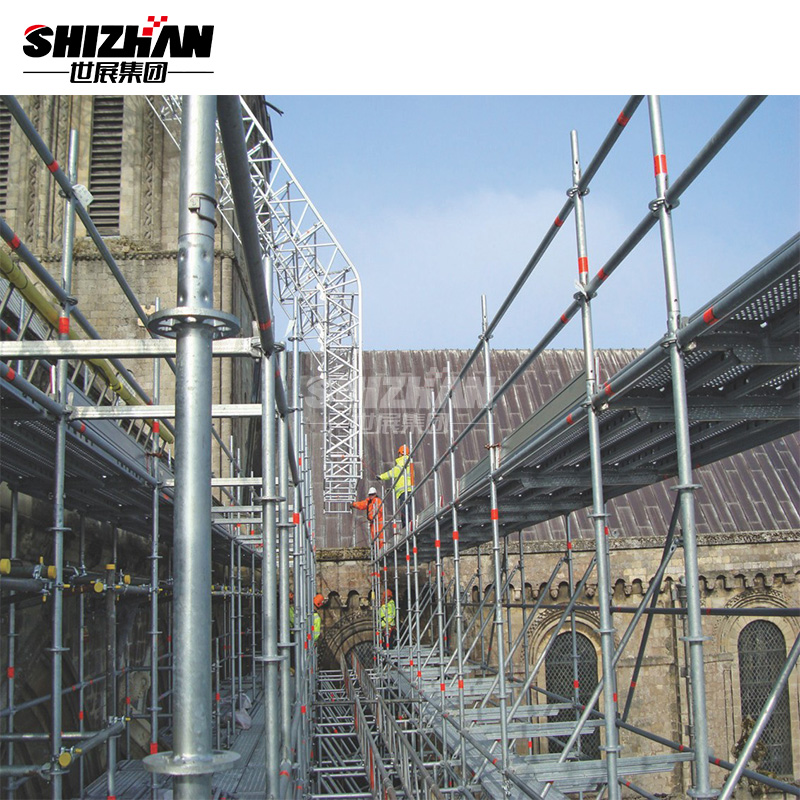

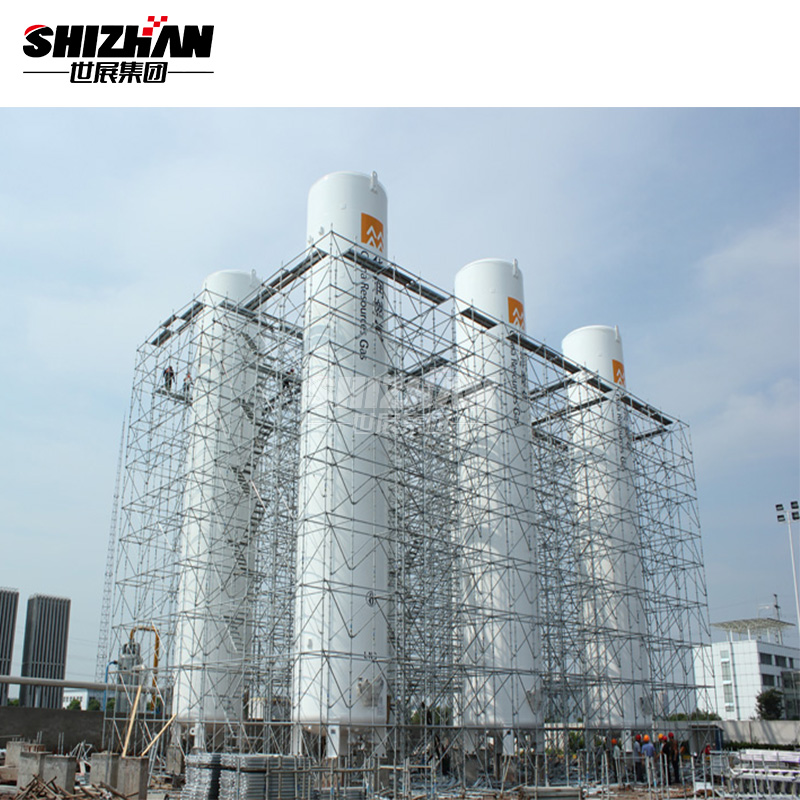

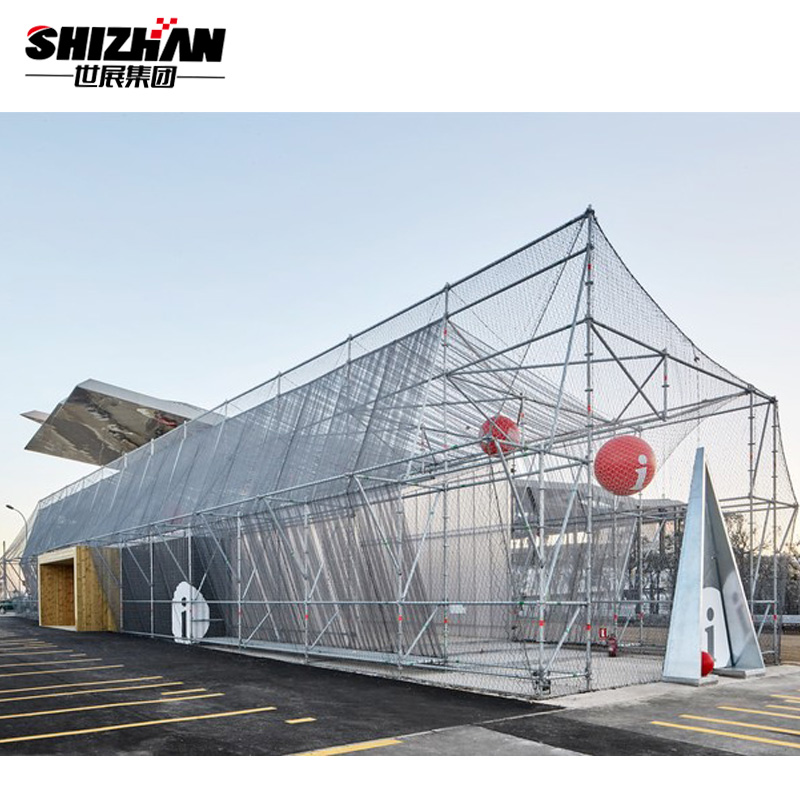

Project Case Design
